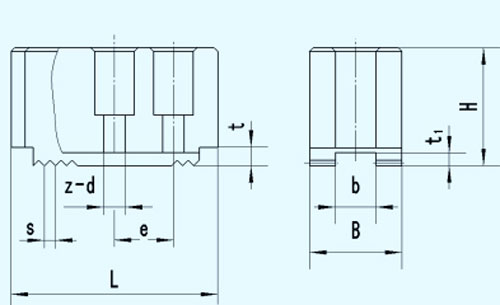

規(guī)格D

Size

L

B

H

b

e

t

t1

s

z-d

125

56

25

32

11

16

4

3.5

1.5×90°

2-9

160

70

35

42

13

20

4.5

4

1.5×90°

2-11

200

82

40

46

16

24

4.5

4

1.5×90°

2-13

250

95

45

50

17

28

4.5

4

1.5×90°

2-13

315

118

50

62

21

32

4.5

4

2.5×90°

2-17

400

150

55

72

22

45

5.5

5

2.5×90°

2-17

規(guī)格D

Size

L

B

H

b

e

t

t1

s

z-d

125

62

23

27

10

19

-

4

1.5×60°

2-11

160

72

31

32

12

20

-

5

1.5×60°

2-11

200

95

35

38

14

25

-

5

1.5×60°

2-13

250

110

40

42

16

30

-

5

1.5×60°

2-13

315

129

50

50

18

30

-

5

1.5×60°

2-15

規(guī)格D

Size

L

B

H

b

E

t

t1

s

z-d

125

54

23

26

10

14

-

4

1.5×60°

2-8.5

160

66

26

28

12

20

-

5

1.5×60°

2-11

200

95

35

38

14

25

-

5

1.5×60°

2-13

250

110

40

42

16

30

-

5

1.5×60°

2-13

315

111

50

50

21

30

-

4

1.5×60°

2-17
